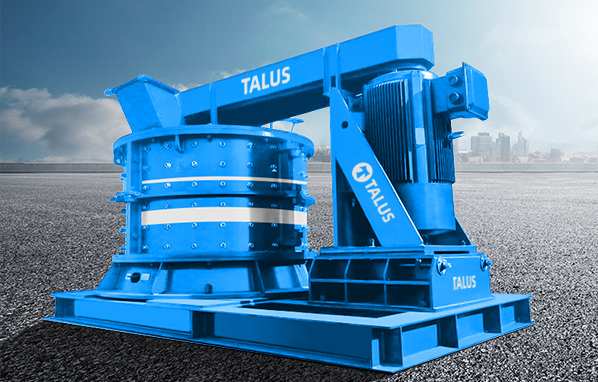

CLV Vertical Shaft Impact Sand Making Machine

Equipment Introduction
Product core technology
Product Structure
Technical Parameter
Product Show
Product Catalogue
+86-18838220688

High sand making efficiency

Long service life

Safety and stability

Low energy consumption

High level of automation

Good granularity of finished products

Equipment Introduction

CLV vertical shaft impact sand maker adopts a series of new technical achievements such as four-port impeller structure, patented bearing cylinder design, high efficiency and low cost crushing cavity and large throughput frame, etc. At the same time, the overall function of the equipment is optimized and designed, so that the crushing efficiency, operating cost and operation and maintenance performance of the equipment have reached the advanced level at domestic and abroad.

Product core technology

Many of our core technical backbones have worked in the crushing and screening division of the international famous crusher manufacturer for 5 years, mainly engaged in manufacturing, quality management and after-sales service. They were mainly engaged in manufacturing, quality management and after-sales service management, and mastered the complete technical system and quality management of crusher parts manufacturing, production assembly, installation and commissioning, and after-sales troubleshooting.

High efficiency four-port deep-cavity impeller

In order to improve the efficiency of sand making, CLV series vertical shaft impact sand maker adopts the new design of four-port deep-cavity impeller, which optimizes the material projecting angle and speed, and improves the crushing efficiency with large material throughput, and increases the crushing efficiency by over 20% compared with that of three-port impeller with the same material.

Design of the national patent bearing cylinder

The bearing cylinder of CLV series vertical shaft impact sand maker is new in structure design, adopts special dust-proof and sealing structure, obtains a number of national patents, supporting imported bearings, further ensuring the reliability of rotation.

Large throughput of the main body

The main body of vertical shaft impact sand maker adopts the simple design of large throughput, which can effectively prevent the materials with excessive water content from clogging in the lower part of the body and improve the crushing efficiency of the whole machine.

Wearable parts are more wear-resistant , reducing the cost of use.

The impeller is the core component of the equipment, through the optimization of the structure and process of the impeller part, and the use of high-quality wear-resistant materials, the service life of the wearing parts is greatly improved, which greatly reduces the cost of the wearing parts of the equipment. When used in the processing of super-hard materials, it is recommended that users can choose "rock on rock" mode of operation, less wear parts, lower cost of use.

Configuration of lifting device reduces maintenance difficulty

CLV series vertical shaft impact sand maker is equipped with a simple lifting device. When the equipment is maintained, additional large lifting device is unnecessary for lifting of the impeller and bearing cylinder, which greatly decreases difficulty of equipment maintenance.

Fully automatic diluted oil lubrication with intelligent control

The lubrication of the equipment adopts optimized diluted oil lubrication and is equipped with air-cooling system, and the control system adopts PLC intelligent control, which can realize fully automatic lubrication control, oil shortage protection, and adjustable lubrication temperature, which can provide better working conditions for bearings to ensure that the equipment continues to work reliably for a long period of time, and the bearings work in a better environment compared with the traditional grease lubrication and do not need to be shut down to replenish the oil every shift.

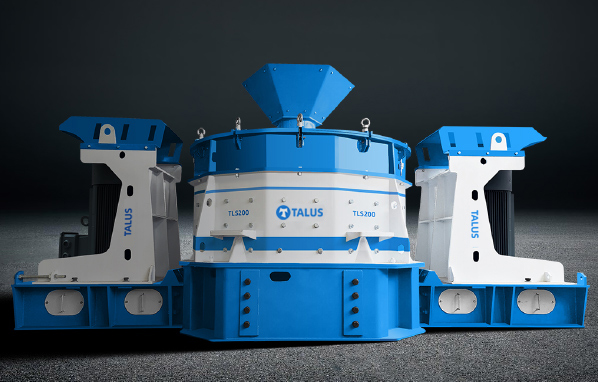

Smoother dual-motor drive

CLV series vertical shaft impact sand maker has a high rotation speed and adopts dual-motor drive, which has a higher transmission efficiency, more uniform radial force on the spindle of the equipment and smoother operation of the equipment. At the same time, fixed structure of the motor bracket is optimized, which makes the motor fixed reliably, and installation and adjustment of the motor more convenient.

Products Structure

Every detail has been deliberately considered, from the exterior design to the internal structure.

Lifting device Sling tray Crushing cavity Pedal bracket Motor Motor bracket Pulley Bearing cylinder Bracket Frame Rotor Feeding hopper

Technical specification

Multiple types available, there is always suitable one for you.

Model	Throughput (t/h)		Max. feeding size		Rotation speed	Dual motor drive power	Overall dimension
Model	Central feeding with circular cascade feeding	Fully central feeding	Soft material(mm)	Hard material(mm)	Rotation speed	Dual motor drive power	Overall dimension
CLV7615	150~280	70~140	35	30	1710~1900	75×2	4100×2330×2300
CLV8522	240~380	120~200	40	35	1530~1700	110×2	4140×2500×2700
CLV9532	350~540	180~280	45	40	1380~1550	160×2	4560×2600×2900
CLV1145	500~640	250~640	50	45	1200~1390	220×2	5100×2790×3320
CLV1150	550~745	344~368	55	45	1000~1300	250×2	5500×2750×3950
CLV1263	650~850	454~486	60	50	900~1200	315×2	5700×2980×4190
