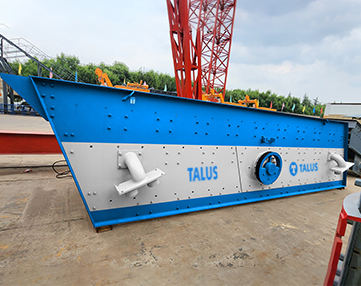

YK Series Inclined Vibrating Screen

The YK series inclined vibrating screen, developed by Henan Talus Equipment Manufacturing, is characterized by mature technology and strong universality of accessories. It has high vibration intensity, high structural strength, simple maintenance, and a long service life. It is suitable for various screening operations such as heavy, medium, and fine screening. This screening machine is ideal for processing products after primary and secondary crushing, as well as inspecting screening and final product in the processes.

Smooth Vibrating

Uniform Screening

Reliable Operation

Long Service Life

Easy Operation and Maintenance

Easy Adjustment and Installation

Product Introduction

The YK series inclined vibrating screen is a multi-layer vibrating screen with a circular movement trajectory. It adopts an eccentric shaft exciter and faster adjustable amplitude, allowing for multi-layer screening with diversified specifications. It is specially designed for sand and gravel material, and can be used for product classification in mining, mineral processing, construction material, coal processing and other industries. It has a sturdy structure and strong vibrating force.

Product Performance

Equipped with NJ vibration exciter assembled with domestic bearings, meeting load-bearing requirements and enabling convenient and quick disassemble and assemble.

Beam frame design with a more reasonable distribution of longitudinal component strength.

Modular design reduces the types of the screen parts, making the maintenance convenient with very few repair points.

Equipped with rubber springs and flexible plate connections, ensuring smooth screen operation.

Large spacing between decks for easy access and replacement of the sieve mesh.

Operation Principle

The YK series inclined vibrating screen is mainly composed of a screen box, exciter, suspension (or support) device, and electric motor. The electric motor drives the main axis of the exciter to rotate through a triangular belt. The unbalanced weight on the exciter generates centrifugal inertia force, causing the screen box to vibrate. By adjusting the eccentric axis of the exciter, different amplitudes can be obtained.

Technical Parameter

The following product configurations may not be factory standard configurations, please consult us for details when purchasing.

Model	Number of Decks	Mesh Area (m²)	Double amplitude (mm)	Vibration frequency (HZ)	Feeding size (mm)	Processing capacity (t/h)	Screen size L×H(mm)	Power (kW)	Weight
YKZ1237	1	4.4	6-8	970	0-200	30-180	1200×3700	11	3.6
2YA1237	2	4.4	6-8	970	200	40-150	1200×3700	11	3.9
3YK1237	3	4.4	6-8	970	200	25-170	1200×3700	11	4.3
4YK1237	4	4.4	6-8	970	200	25-200	1200×3700	15	4.6
YK1245	1	5.4	6-8	970	250	40-150	1200×4500	15	3.8
2YK1245	2	5.4	6-8	970	250	40-150	1200×4500	15	4.2
3YK1245	3	5.4	6-8	970	250	40-150	1200×4500	18.5	6.1
YK1545	1	6.75	6-8	970	300	100-180	1500×4500	11	3.9
2YK1545	2	6.75	6-8	970	300	100-180	1500×4500	15	4.4
3YK1545	3	6.75	6-8	970	300	100-180	1500×4500	15	4.9
4YK1545	4	6.75	6-8	970	300	100-180	1500×4500	18.5	5.3
2YK1548	2	7.2	6-8	970	300	63-300	1500×4500	15	4.9
3YK1548	3	7.2	6-8	970	300	180-280	1500×4500	15	6
4YK1548	4	7.2	6-8	970	300	35-315	1500×4500	15	7
YK1848	1	8.64	6-8	970	300	100-250	1800×4800	18.5	4.7
2YK1848	2	8.64	6-8	970	300	100-500	1800×4800	18.5	6.5
3YK1848	3	8.64	6-8	970	300	100-500	1800×4800	18.5	7.5
4YK1848	4	8.64	6-8	970	300	100-500	1800×4800	22	9.1
YK1860	1	10.8	6-8	970	400	100-450	1800×6000	22	4.9
2YK1860	2	10.8	6-8	970	400	100-300	1800×6000	22	7.2
3YK1860	3	10.8	6-8	970	400	100-250	1800×6000	22	8.3
4YK1860	4	10.8	6-8	970	400	100-250	1800×6000	22	9.2
YK2160	1	12.6	6-8	970	400	100-864	2100×6000	30	5.9
2YK2160	2	12.6	6-8	970	400	150-800	2100×6000	30	7.8
3YK2160	3	12.6	6-8	970	400	150-800	2100×6000	30	10.7
4YK2160	4	12.6	6-8	970	400	150-800	2100×6000	37	11.1
YK2460	1	14.4	6-8	970	400	150-875	2400×6000	37	6.2
2YK2460	2	14.4	6-8	970	400	150-875	2400×6000	37	8
3YK2460	3	14.4	6-8	970	400	150-875	2400×6000	37	10.7
4YK2460	4	14.4	6-8	970	400	150-875	2400×6000	37	12.8
YK2865	1	18.2	6-8	700-900	400	150-875	2800×6000	37	9.8
2YK2865	2	18.2	6-8	700-900	400	150-875	2800×6000	37	11.4
3YK2865	3	18.2	6-8	700-900	400	150-875	2800×6000	45	13
4YK2865	4	18.2	6-8	700-900	500	200-875	2800×6000	45	14.2
YK3060	1	18	6-8	700-900	500	200-900	3000×6000	37	9.1
2YK3060	2	18	6-8	700-900	500	200-900	3000×6000	37	12.6
3YK3060	3	18	6-8	700-900	500	200-900	3000×6000	45	15.6
YK3072	1	21.6	6-8	700-900	500	200-950	3000×7200	37	9
2YK3072	2	21.6	6-8	700-900	500	200-950	3000×7200	45	12.8
3YK3072	3	21.6	6-8	700-900	500	200-950	3000×7200	2×37	16.8
4YK3072	4	21.6	6-8	700-900	500	200-950	3000×7200	2×37	19.5
